phyBOARD®-Segin STM32MP13x
Rapid development kit

Development platform for the phyCORE-STM32MP13x

  • Equipped with the ultra-low-cost module STM32MP13x processor
  • Also available: phyBOARD-Segin with the pin-compatible processors i.MX 6UL and i.MX 91/93 (→ find out more)
  • Powerful Cortex A7-1GHz
  • With CAN-FD, STM32 software tools, 2x RJ45-LAN and 5V supply
  • Reference design for cost-optimized baseboard design with only 4 layers
  • Cortex-A7 with up to 1 GHz frequency

36mm x 36mm x 3mm

STM32MP13x: Arm Cortex-A7

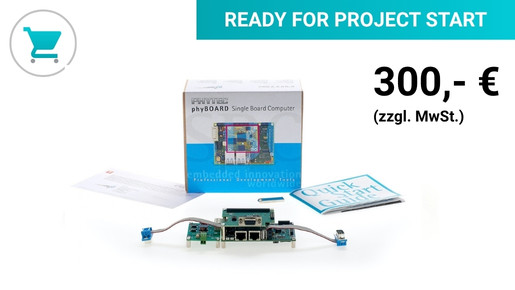

Kit contents:

  • phyBOARD-Segin with phyCORE-STM32MP13x module
  • Linux Yocto BSP
  • USB stick with development environment in VM
  • Debug adapter
  • Power Adapter
  • 2x D-Sub connector 9-pin.
  • Quick Start Instructions
  • Commissioning guarantee
  • Workshop voucher

Description:

The single board computer phyBOARD-Segin in Pico-ITX format (100 mm x 72 mm) included in the kit enables rapid application development with the phyCORE-STM32MP13x module.

The phyCORE-STM32MP13x system-on-module is completely suitable for industrial use and is characterized by its price-optimized bill of material.

The SOM is soldered directly onto the phyBOARD-Segin (Direct Solder Connect). The phyBOARD-Segin therefore represents an industrial reference platform for the development of a customer-specific application with the phyCORE-STM32MP13x. However, it can also be used as an independent SBC in a customer application.

Since the phyBOARD-Segin can alternatively be equipped with the phyCORE-i.MX 6UL/ULL and the phyCORE-i.MX 93, it is particularly suitable for applications that need to be scalable.

Interfaces such as Ethernet, USB and others are available via standard connections. A selection of signals from the STM32MP13x processor is available via an expansion strip intended for connecting customer-specific circuits. Another connector strip allows displays, touch and audio to be easily connected.

Module phyCORE-STM32MP13x
SOM Mounting Soldered (plated half-holes, 1 mm pitch)
Processor STM32MP13x
Architecture ARM Cortex-A7
Frequency 1x 650/1000 MHz
NAND Flash 4 GB up to 256 GB eMMC or 128 MB up to 2 GB NAND Flash
DDR3L RAM 64 MB up to 1 GB
EEPROM 4 kB up to 32 kB
Ethernet up to 2x 10/100 Mbit/s
USB 1x Host/ 1 x OTG
Serial 1x RS232 or RS485
CAN 1x CAN FD
Debugging UART, JTAG (optional) via Debug-Adapter
Mass Memory microSD Card Slot
Display 24 bit parallel (via optional Display Adapter PEB-AV-02/18)
Audio 1x Stereo Line In, 1x Stereo, Speaker Line Out
Camera phyCAM-P
Expansion Bus SPI, UART, SD, JTAG, CAN, GPIOs, ADC, Timer,Watchdog, Tampers
User Control Elements Reset Button
Boot Source eMMC/SDIO/UART/USB
RTC Goldcap for SOM and on-board RTC
Power supply 5V oder 12 V - 30 V via Power Adapter
Dimensions 100 mm x 72 mm (Pico-ITX format)
Temperature range -40°C to +85°C
Humidity 95 % rF non condensing
Betriebssystem Linux
Distribution Yocto OpenSTLinux

Didn't find an answer? Just ask your question in Live Chat

symbol online shop.svg

phyBOARD Segin STM32MP13x
Rapid development kit


Item No.: KPB-02030

Available variants:

100.00  plus VAT.

Due to the current component situation, you will receive the delivery date in the order confirmation

Quantity:

Add-on Item number Price Order
HDMI adapterPEB-AV-0115.00 plus VAT.
Sterling WIFI Bluetooth Expansion 2.4GHz / 5GHzKPEB-WLBT-0539.00 plus VAT.
10.1" LVDS Display and Audio Expansion KitKPEB-AV-10-Pollux.A2245.00 plus VAT.

phyBOARDsegin STM32MP13x kit

Item No. KPB-02031-001

If you have any questions, please contact our technical sales team: +49 (0) 6131 9221-32
