READY TO EMBED

phyBOARD^®-Segin
i.MX 6UL / ULL

The SBC offers high computing power with low energy consumption and an excellent price-performance ratio.

Available with i.MX 6ULL-Y0 or i.MX 6UL-G2
Series-ready design, no further hardware expenditure
Extended interface subset via expansion
Simple middleware integration
Ethernet up to 2x 10/100 Mbit / s
Camera interface (phyCAM-P)

100 mm x 72 mm

ARM Cortex-A7

The phyCORE-i.MX 100UL / ULL variants can be put into operation with the single board computer phyBOARD-Segin in Pico-ITX format (72 mm x 6 mm). The module is soldered directly onto the phyBOARD segin. A number of signals from the i.MX 6UltraLite processor are routed to an expansion connector that is intended for plugging in customer-specific circuits. These processor connections can easily be implemented by the customer himself. For the customer-specific combination of an individual system, further interfaces are provided on connector strips, such as CAN, GPIOs, audio and touch.

Individual extraServices:

Individual project kit

Development phases

embedded imaging

BSP adjustments

IoT integration

Certifications

Module	phyCORE-i.MX 6UL/ULL
SOM Mounting	Soldered (DSC)
Processor	i.MX 6UL, i.MX 6ULL
Architecture	ARM Cortex-A7
Frequency	792 MHz

Expand all

Memory

NAND Flash	512 MB SLC
DDR3L RAM	512 MB
EEPROM	4 kB

Interfaces

Ethernet	up to 2x 10/100BASE-T
Wi-Fi	optional via Wi-Fi Adapter
Bluetooth	optional via Wi-Fi Adapter
USB	1x Host, 1x OTG
Serial	1x RS-232 or RS-485
CAN	1x
MMC/SD/SDIO	microSD card slot
Display	24-bit parallel (via optional display adapter PEB-AV-02)
Audio	1x stereo line In, 1x stereo, speaker line out
Camera	1x parallel (phyCAM-P)
Expansion Bus	SPI, UART, SD, JTAG, CAN, GPIOs, ADC, Timer, Watchdog, Tampers
User Control Elements	reset button, CPU ON/OFF buttons
Boot Source	SD card, NAND flash

Physical Data

RTC	Goldcap for SOM and on-board RTC
Power supply	12 V - 24 V via Power Adapter
Dimensions	100 mm x 72 mm (Pico-ITX format)
Temperature range	-40 °C to +85 °C

Software

Operating system

Linux (Yocto based)

phyBOARDsegin

expand all

Didn't find an answer? Just ask your question in Live Chat

phyBOARD^®-segin

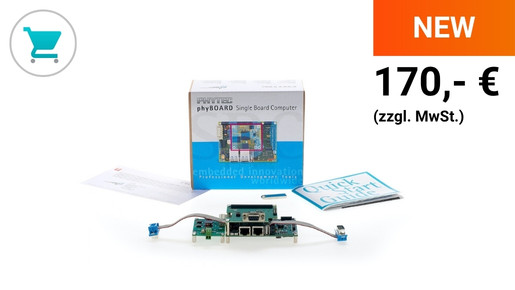

Item No. PB-02013
